Based on the proven deep conical design from CONELOG®, and the Tapered Pro body, BioHorizons Tapered Pro Conical’s design features provide a predictable solution for immediate treatment. It is designed for surgical efficiency with a best-in-class conical connection.1
Ask us about Tapered Pro Conical

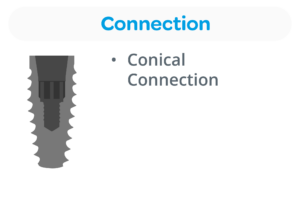

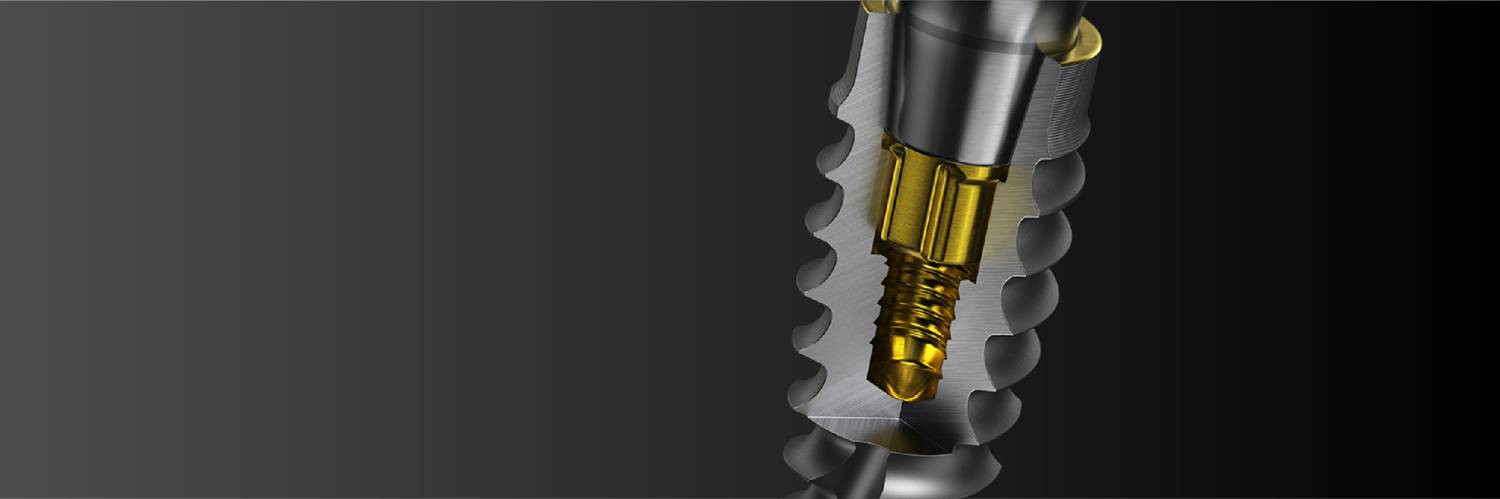

Tapered Pro Conical’s connection features a long conus designed to reduce micromovements and a 7.5° angulation that is proven to provide superior positional stability in comparison to other conical systems.2

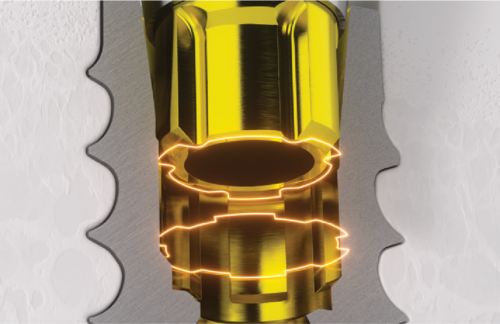

The 6-cam connection is designed for flexible abutment orientation options and direct-drive for simpler implant insertion.

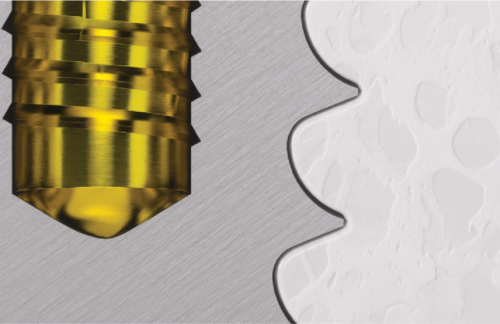

Deep, buttress threads are designed to provide primary stability.

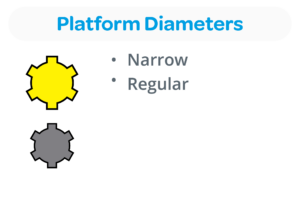

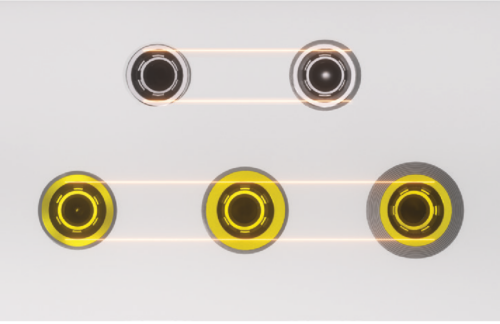

Using only two prosthetic platforms to improve restorative workflow efficiency and simplify inventory management.

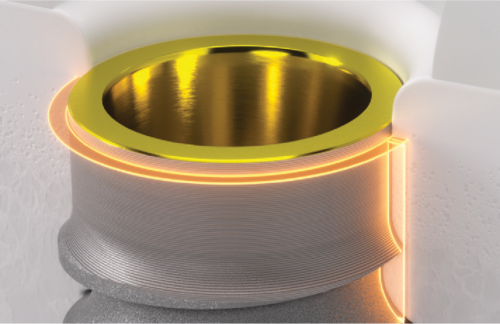

Featuring platform-switching, designed to preserve crestal bone and deliver aesthetic results.
The flat implant shoulder is designed to reduce vertical discrepancy by allowing restorative components to sit on the implant shoulder preserving the conical connection for final abutments.

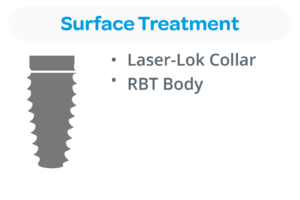

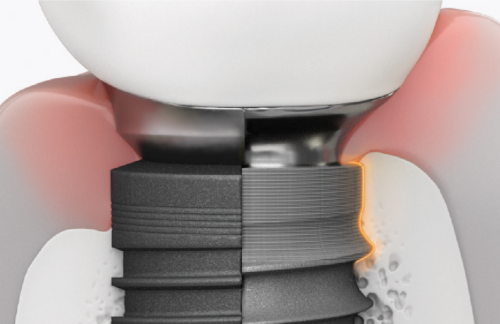

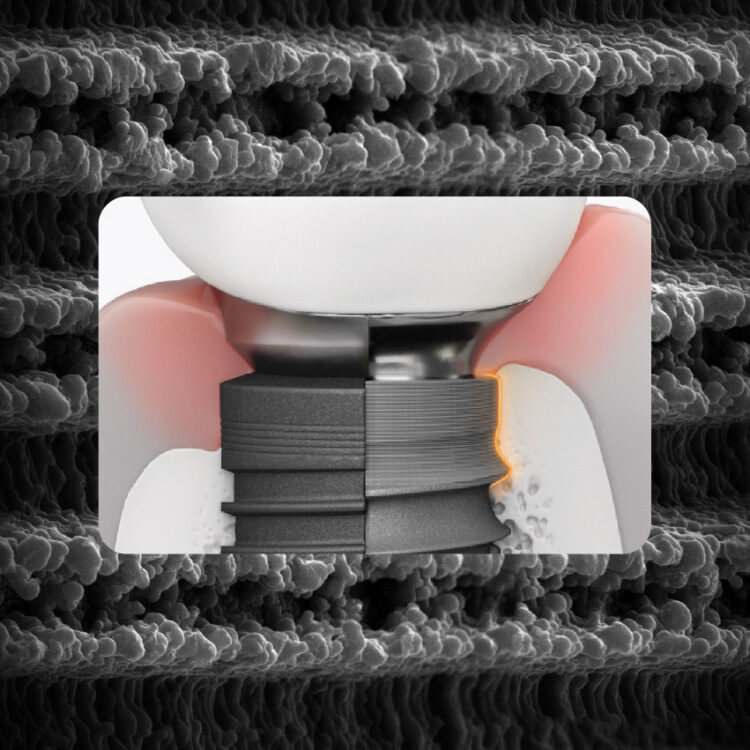

Equipped with Laser-Lok surface treatment shown to create a connective tissue attachment and retain crestal bone. The reduced collar diameter is designed to preserve vital bone.

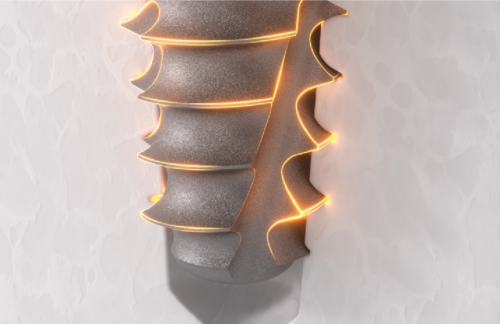

End cutting, self-tapping, helical cutting flutes designed for controlled placement.
Control cellular migration – control aesthetic outcomes
Only the Laser-Lok surface has been shown using light microscopy, polarised light microscopy and scanning electron microscopy to also be effective for soft tissue attachment. 4,5
“There is no other implant that shows functional orientation of fibers. There is not one. This is the only one. This is so important.” 6
— Dr. Edward P Allen
Discover Laser-Lok

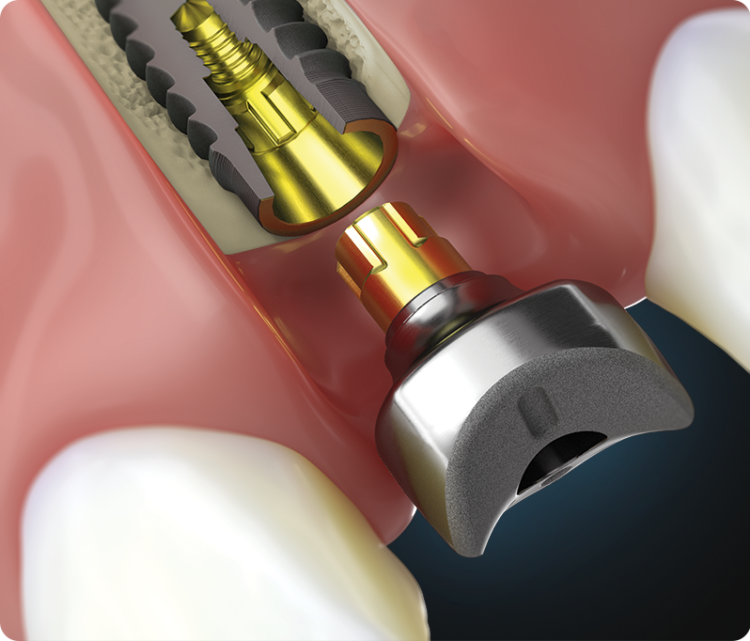

Anatomically shaped healing abutments that are integrated with digital and traditional restorative workflows.
COMING SOONDocuments
Videos & Animations
References
1 – Semper-Hogg, W et al. Analytical and experimental position stability of the abutment in different dental implant systemswith a conical implant–abutment connection. Clinical Oral Investigation (2013) 17: 1017.
2 – Moergel M, et al. Radiographic evaluation of conical tapered platform-switched implants in the posterior mandible:1-year results of a two-center prospective study. Clinical Oral Implants Research. 00, 2015;1-8.

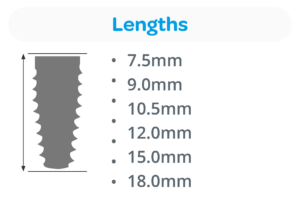

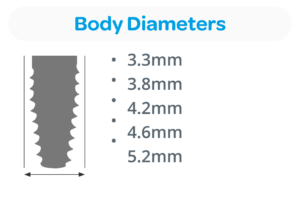

3 – Implants are not available in all platform diameter, body diameter and length configurations. Please visit store.biohorizons.com for full availability.
4 – Human Histologic Evidence of a Connective Tissue Attachment to a Dental Implant.M Nevins, ML Nevins, M Camelo, JL Boyesen, DM Kim.International Journal of Periodontics & Restorative Dentistry. Vol. 28, No. 2, 2008.
5 – Histologic evidence of a connective tissue attachment to laser microgrooved abutments: a canine study.M Nevins, DDS, DM Kim, DDS, DMSc, SH Jun, DDS, MS, K Guze, DMD, P Schupbach, PhD, ML Nevins, DMD, MMSc.Accepted for publication: IJPRD, Vol 30, No. 3, 2010.
6 – Symposium 2013 Laser-Lok highlightsAvailable at: Laser-Lok highlights
